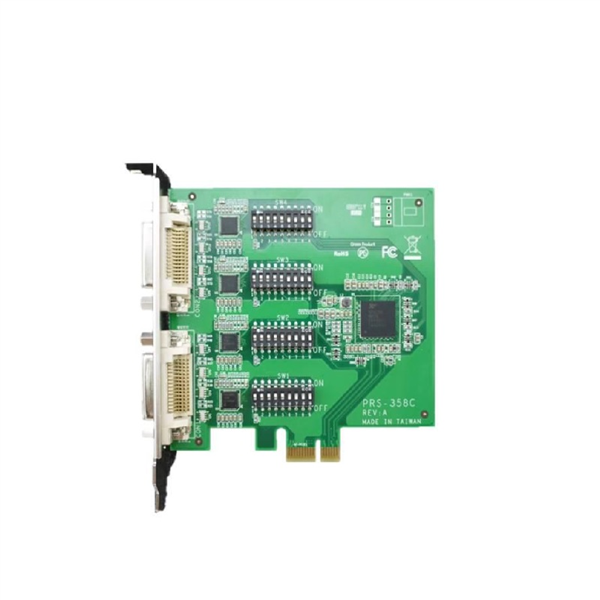

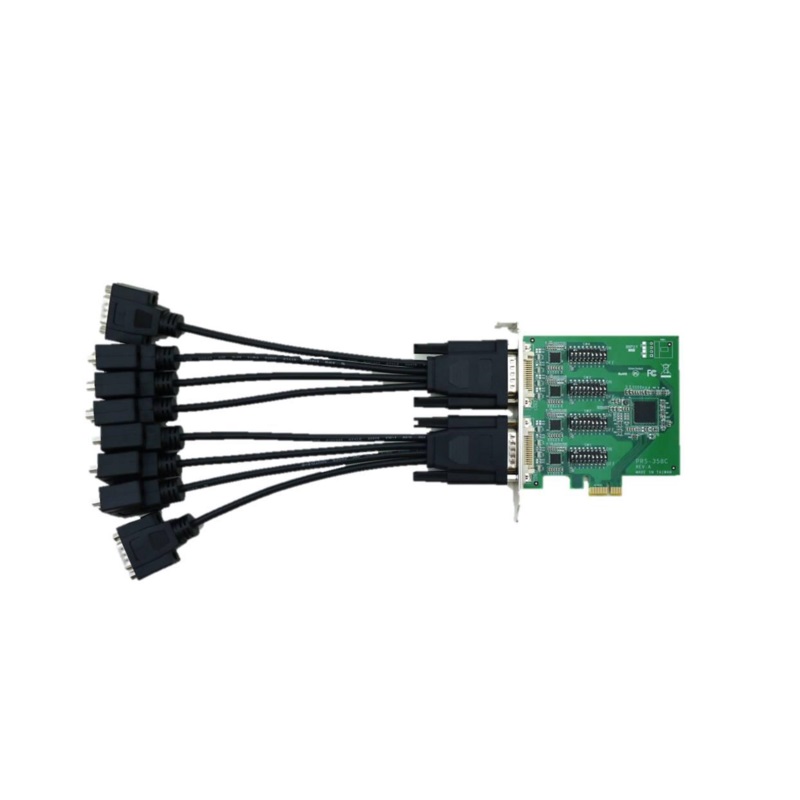

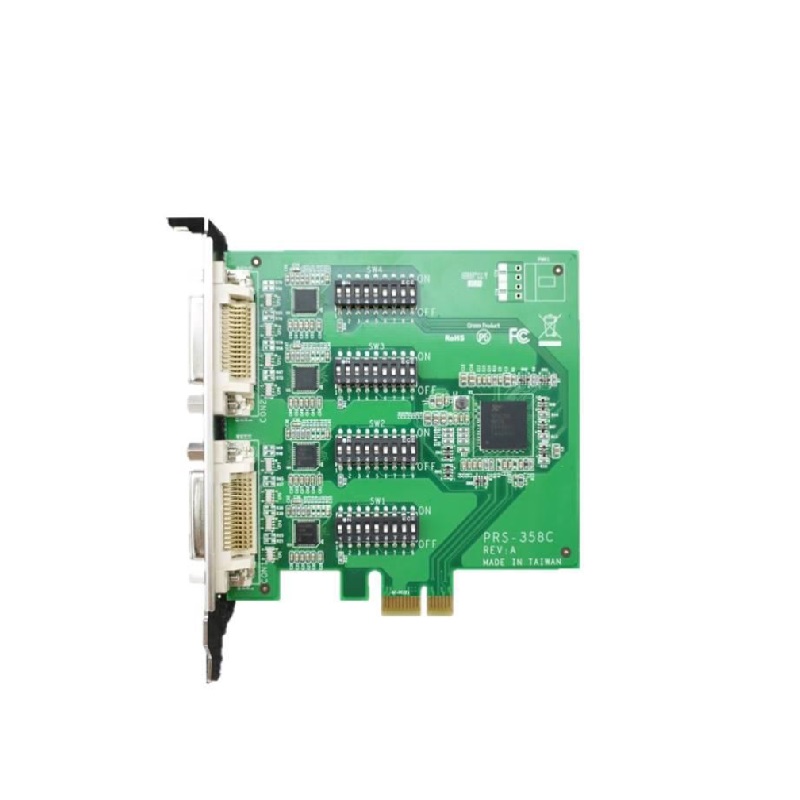

PRS-358C

PCIe-COM 8 port Multiprotocol Serial Card

Main Feature
  • 8 or 4 port PCI Express serial communication cards
  • Serial protocol (RS-232/422/485) SOFTWARE CONFIGURED per port, stored in EEPROM for auto-configure at next boot
  • Low profile PCIe MD2 form factor, works in standard height or low-profile PCIe computers
  • High performance XR17V358 class UARTs with 256-byte FIFOs for each TX and RX
  • Max Data Rate of 20Mbps in RS-485/422, up to 1Mbpsin in RS-232
  • Jumper selectable termination per port for RS-485 applications

FACTORY OPTIONS
  • Also available in RS-485 and RS-422 only versions
  • Connector strengthening bracket for secure and fail-proof cable connections
  • Extended temperature operation (-40°C to +85°C)
  • High-speed RS-232 version up to 921.6kbps
  • Low profile bracket installed for small, embedded PCs
  • IEC 61000-4-2 (ESD) ±30kV (air/contact)
  • IEC 61000-4-4 (EFT) 80A (5/50ns)
  • IEC 61000-4-5 (Lightning) 25A (8/20µs)
