Products   /  Expansion Card  /  Serial Port Card

PRS-232-8

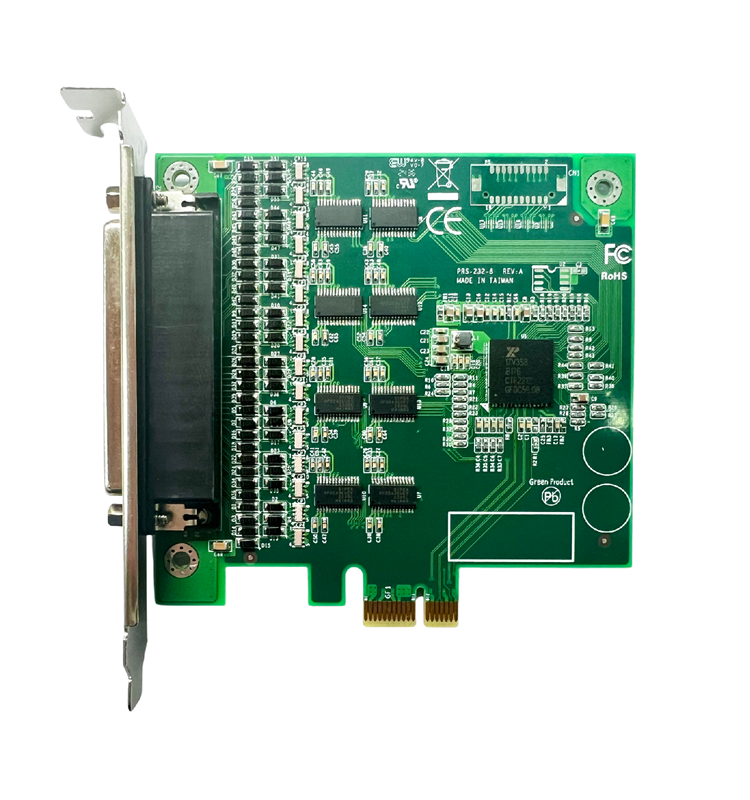

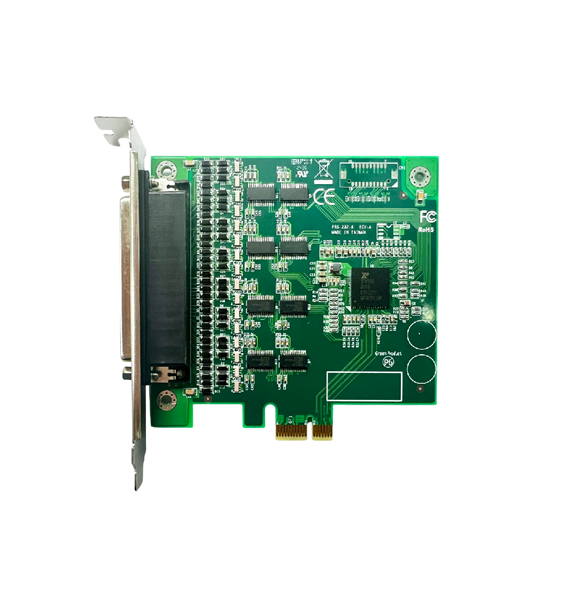

PCIe-COM-RS232 Serial Card ( 8 x RS232)

Main Feature
  • 8 port RS-232 PCI Express serial communication cards
  • Serial protocol (RS-232) SOFTWARE CONFIGURED per port, stored in EEPROM for auto-configure at next boot
  • Low profile PCIe MD2 form factor, works in standard height or low-profile PCIe computers
  • High performance XR17V358 class UARTs with 256-byte FIFOs for each TX and RX
  • Up to 1Mbpsin in RS-232

FACTORY OPTIONS
  • Connector strengthening bracket for secure and fail-proof cable connections
  • Extended temperature operation (-40°C to +85°C)
  • High-speed RS-232 version up to 921.6kbps
  • Low profile bracket installed for small, embedded PCs
  • IEC 61000-4-2 (ESD) ±30kV (air/contact)
  • IEC 61000-4-4 (EFT) 80A (5/50ns)
  • IEC 61000-4-5 (Lightning) 25A (8/20µs)
