Products   /  Industrial Motherboard  /  PICMG 1.3 Full Size

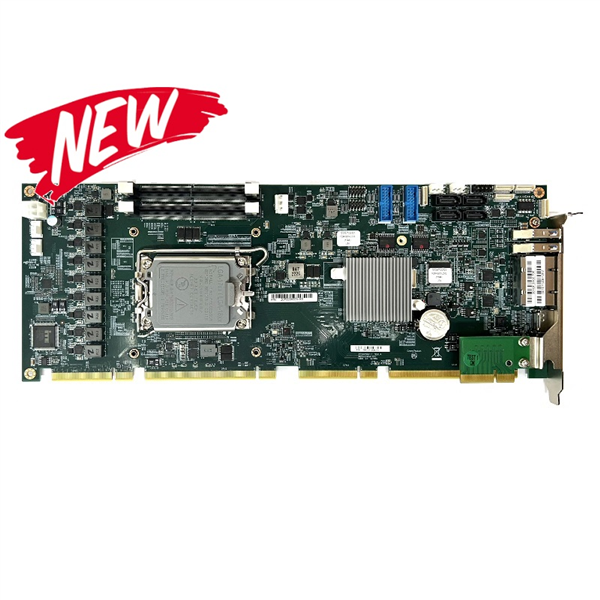

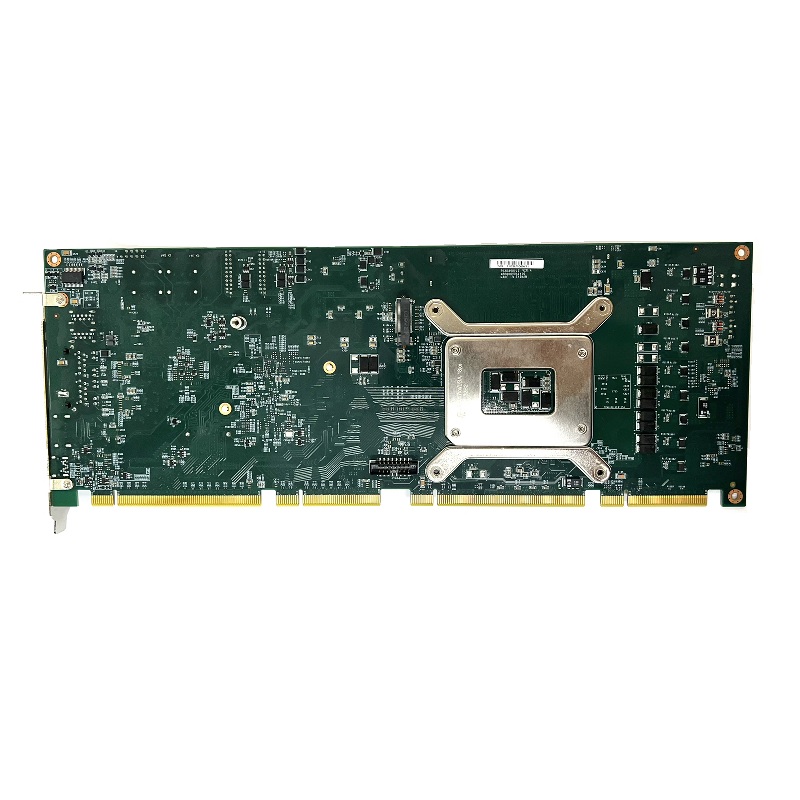

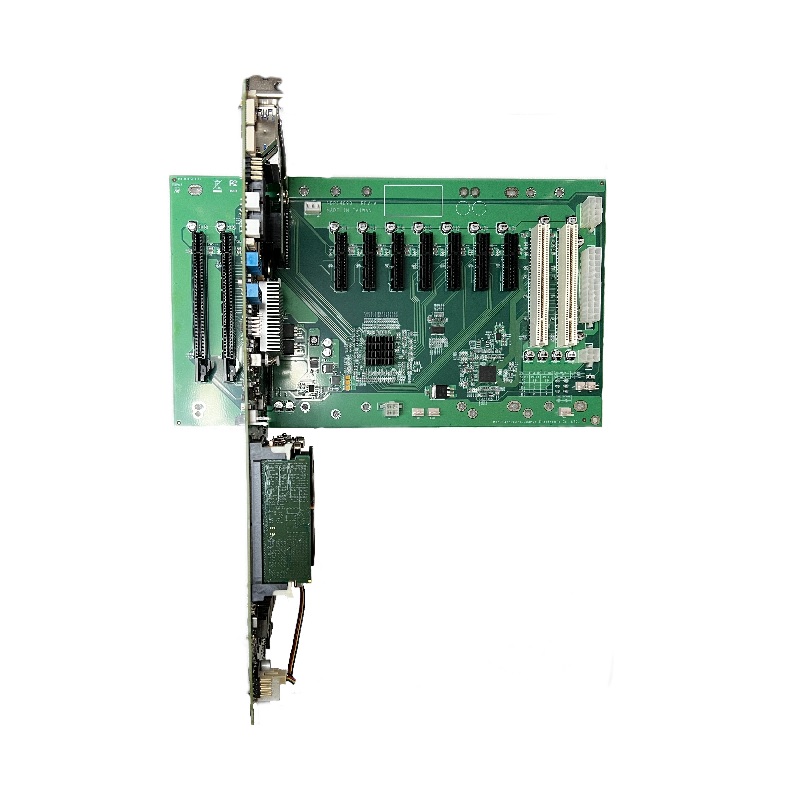

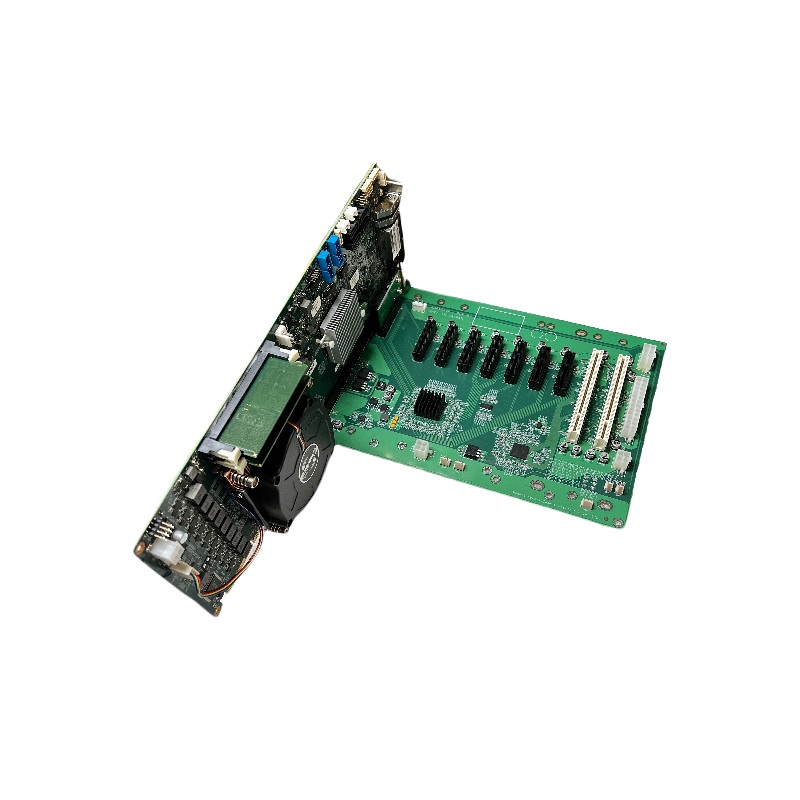

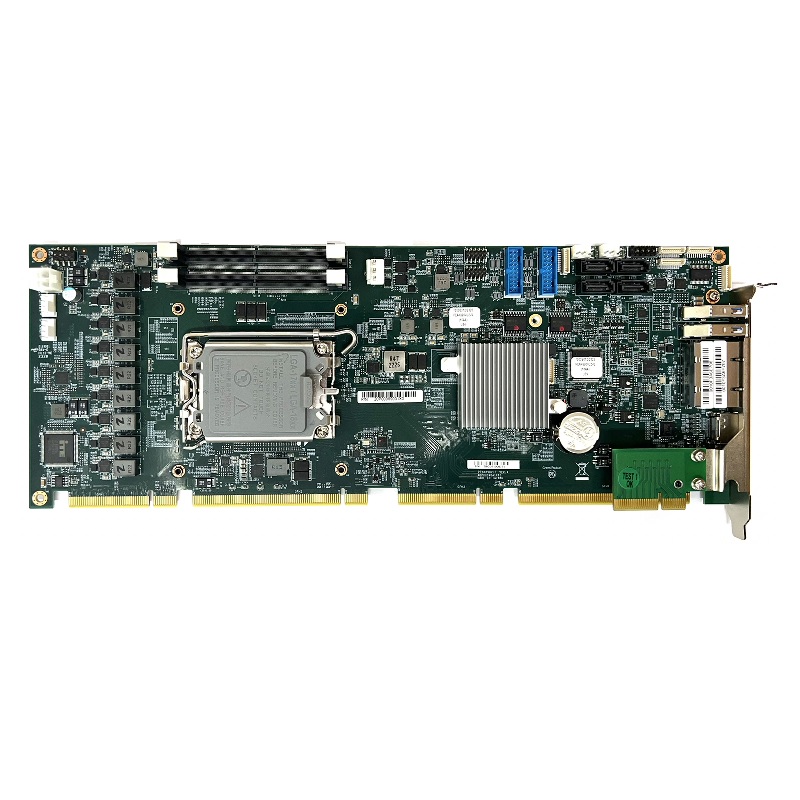

PEAK 890

Main Feature
  • Support 12th/ 13th generation Intel® Core™ i9/i7/i5/i3 processor

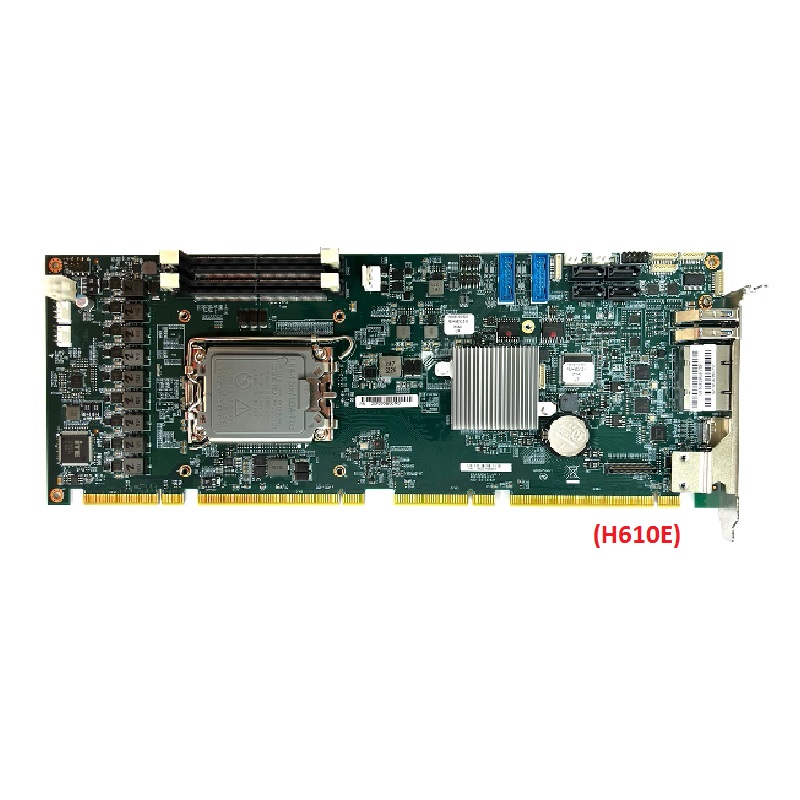

  • Support Intel® R680E/Q670E/H610E PCH chipset PICMG 1.3 specification
  • Support Dual channel DDR5 DIMMs 4800MHz up to 64GB
  • Support SATA 3.0 W/RAID 0,1,5,10/ PCIe 4.0 M.2 NVMe
  • Support multiple display for Mini-DP, HDMI, VGA
  • 6 x USB3.2, 8 x USB2.0
  • 2 x RS232, 2 x RS232/422/485
  • 4 x SATA III, 1 x M.2(2280)
  • 2 x 2.5GbE LAN
  • Optional: CPU cooler, M.2 storage
  • Support Intel® TPM 2.0 on board
DATASHEET
